Key Points

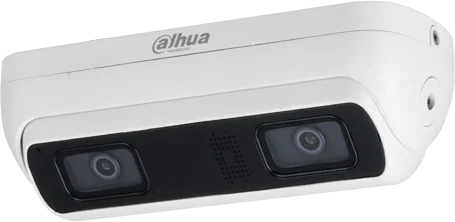

- 4MP 1/2.8-inch CMOS Sensor, Low Luminance, High Definition Image
- Built-in GPU Chips, Binocular Stereo Vision and Deep Learning Algorithm
- Intelligent Functions: Stereo Analysis and IVS
- Stereo Analysis: Fall Detection, Violence Detection, People Approaching Detection
- Privacy Protection: Automatic Mosaic on Face or Body
- IP67 and IK10 Protection
Specifications
Camera
| Image Sensor | 1/2.8" CMOS |
|---|---|
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 2.0 mm: 0.005 lux@F2.0 (Color, 30 IRE) 0.0005 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) 2.8 mm: 0.005 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 20 m (65.62 ft) (IR) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 1 (IR LED) |
| Angle Adjustment | Tilt: –10° to 70° |
Lens
| Lens Type | Fixed-focal |
|---|---|
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 2.0 mm |
| Max. Aperture | 2.0 mm: F2.0 2.8 mm: F1.6 |
| Field of View | 2.0 mm: H: 108°; V: 74°; D: 117° 2.8 mm: H: 87°; V: 55°; D: 97° |
| Iris Control | Fixed |
| Close Focus Distance | 2.0 mm: 0.4 m (1.31 ft) 2.8 mm: 1.1 m (3.61 ft) |
| DORI Distance | Lens Detect Observe Recognize Identify 2.0 mm 44.8 m (146.98 ft) 17.9 m (58.73 ft) 9.0 m (29.53 ft) 4.5 m (14.76 ft) 2.8 mm 63.6 m (208.66 ft) 25.4 m (83.33 ft) 12.7 m (41.67 ft) 6.4 m (21.00 ft) |
| DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. | |
Smart Event
| IVS | Abandoned object; missing object |
|---|
Intelligence
| IVS (Perimeter Protection) | Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection; people gathering; loitering detection; privacy protection |
|---|---|
| Stereo Analysis | Crossing warning line; warning area intrusion; running detection (only supported by inclined mount cameras); people approaching detection; violence detection (including fighting and smashing); fall detection; abnormal number of people detection; people stay detection; privacy protection; height filtering |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
Video
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
|---|---|
| AI Coding | AI H.265; AI H.264 Includes smart codec technology, Smart H.265+ and Smart H.264+ |
| Video Frame Rate | Main stream: 2688 × 1520@(1–25/30 fps) Sub stream: 1920 × 1080@(1–25/30 fps) Third stream: 1920 × 1080@(1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | ABR; CBR; VBR |
| Video Bit Rate | H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Smart Illumination | Yes |
| Defog | Yes |
| Privacy Masking | 8 areas |
Audio
| Built-in MIC | Yes, built-in Mic |
|---|---|
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
Alarm
| Alarm Event: No SD card; SD card full; SD card error; network disconnection; IP conflict; voltage detection; illegal access; motion detection; video tampering; scene changing; audio detection; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; crossing warning line; warning area intrusion; running detection; abnormal number of people detection; fall detection; people approaching detection; violence detection; people stay detection |
Network
| Network Port | RJ-45 (10/100/1000 Base-T) |
|---|---|
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; auto registration |
| Interoperability | ONVIF (Profile S; Profile G; Profile T); P2P; CGI |
| User/Host | 20 |
| Storage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
| Browser | IE: IE 9 and later Chrome: Chrome 41 and later Firefox: Firefox 50 and later Safari: Safari 10 and later |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | iOS; Android |
| Security | Trusted execution; Session security; Digest; Security logs; WSSE; Account lockout; Security warning; syslog; 802.1x; IP/MAC filtering; HTTPS; Trusted upgrade; Trusted boot; Generation and importing of X.509 certification |
Certification
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
|---|
Port
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
|---|---|
| Audio Input | 2 channels (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 2 channels in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 2 channels out: wet contact, 300 mA 12 VDC |
| Analog Output | 1 channel (CVBS output: BNC) |
| Power Output | 12 VDC power output, max. current 165 mA, peak current 700 mA |
Power
| Power Supply | 12 VDC/PoE (802.3af)/ePoE |
|---|---|
| Power Consumption | Basic: 5.9 W (12 VDC), 7 W (PoE) Max. (intelligence on + IR intensity + turn on the speaker + power output): 10.8 W (12 VDC), 12.9 W (PoE) |
Environment
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
|---|---|
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67; IK10 |
Structure
| Casing Material | Metal |
|---|---|
| Product Dimensions | 204.0 mm × 78.0 mm × 61.6 mm (8.03" × 3.07" × 2.43") (L × W × H) |
| Net Weight | 0.82 kg (1.81 lb) |
| Gross Weight | 1.14 kg (2.51 lb) |
