Key Points
- Up to 2 Times PV Oversizing, Compatible with 182/210 PV Modules
- Built-in Aerosol Fire Suppression, Four-Layer Protection Design
- <10 ms EPS Switching Time, 110% Unbalanced Output
- Up to 5 Units in Parallel, Capacity up to 149.76 kWh
- Plug-in Terminals Save 75% Installation Time, IP65 Indoor or Outdoor
- Compatible with VPP, EV and Diesel Generators, Remote Updates
Specifications
PV Input
| Max. PV Input Power | 20000 Wp |
|---|---|
| Max. Input Voltage | 1000 V |
| Rated Input Voltage | 620 V |
| Start-up Voltage | 145 V |
| MPPT Voltage Range | 180...980 V |
| Max. Input Current | 42 A (16 A * 1, 26 A * 1) |
| Max. Input Short Circuit Current | 56 A (20 A * 1, 36 A * 1) |
| No. of MPPT | 2 |
| No. of PV Strings per MPPT | 1/2 |
Battery
| Battery Type | LFP, 3.2 V / 52 Ah |
|---|---|
| Battery PACK Configuration | 1P*30S, 4.992 kWh |
| Battery Capacity | 9.98...29.9 kWh |
| Voltage Range | 160...700 V |
| Max. Charging/Discharging Current | 30 A / 30 A |
AC Input/Output
| Rated Input/Output Power | 17900 W / 10000 W |
|---|---|
| Max. Apparent Input/Output Power | 17900 VA / 10000 VA |
| Rated Input/Output Current | 26 A / 16 A |
| Max. Input/Output Current | 26 A / 16 A |
| Rated Output Voltage | 3/N/PE, 220 V / 380 V, 230 V / 400 V, 240 V / 415 V |
| Rated Frequency | 50/60 Hz |
| Power Factor | 1 (-0.8...+0.8 adjustable) |
| Total Harmonic Distortion (THDi) | < 3% |
EPS Output
| Rated Output Power | 10000 W |
|---|---|
| Peak Apparent Output Power | 1.6 times of rated power, 10 s |
| Rated Output Voltage | 3/N/PE, 220 V / 380 V, 230 V / 400 V, 240 V / 415 V |
| Rated Output Current | 16 A |
| Rated Frequency | 50/60 Hz |
| Back-up Switch Time | < 10 ms |
| Power Factor | 1 (-0.8...+0.8 adjustable) |
| Total Harmonic Distortion (THDi) | < 2% |
| The rated output power depends on the input power of the photovoltaic and batteries. | |
Efficiency
| PV Max. Efficiency | 98.00% |
|---|---|
| PV Europe Efficiency | 97.00% |
Protection
| Over/Under Voltage Protection, DC Isolation Protection, DC Injection Monitoring, Residual Current Detection, Anti-islanding Protection, Over Load Protection, Battery Input Reverse Polarity Protection, PV Reverse Polarity Protection, Surge Protection, Over Heat Protection |
General Data
| Topology | Non-isolated |
|---|---|
| Dimensions (W*D*H) | 600*350*450 mm (Inverter module) 600*350*210 mm (High Voltage Box and Base) 600*350*305 mm (Battery module) |
| Weight | 33 kg (Inverter module) 11 kg (High Voltage Box and Base) 57 kg (Battery module) |
| Operating Temperature Range | -20°C...+55°C |
| Relative Humidity | 0%...95% |
| Altitude | ≤ 3000 m |
| Cooling | Natural Convection |
| Noise | < 25 dB |
| Ingress Protection | IP65 |
| Display | LED / APP |
| Communication | RS485 / CAN |
| Installation | Floor-standing |
| Standard | UN 38.3, IEC 61000, IEC 62619, IEC 63056, IEC 62109, IEC 62040, EN 50549-1/-10, C10/11, EIFS 2018:2, VDE-AR-N 4105, RfG:2015, NC RfG:2018, PTPiREE:2021, AS/NZS 4777.2, G98/G99, CEI 0-21 |
| The operating temperature applies when the intelligent heating module is built in. Without it, the operating temperature is Charge: 0°C...50°C, Discharge: -20°C...+55°C. | |

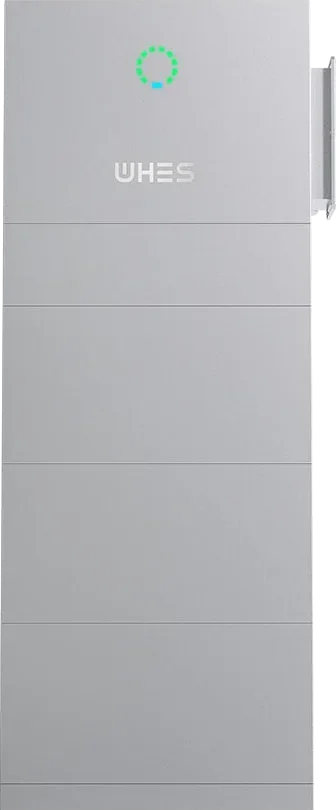

| The product features a shiny silver color design with a mirror-like logo, which exhibits subtle color variations under different lighting conditions. | |
