Key Points
- High-Quality Imaging with 2MP Resolution
- 32× Optical Zoom Provide Close Up Views Over Expansive Areas
- Expansive Night View With up to 200m IR Distance for 24/7 Monitoring
- 4 in 1 (4 Signals Switchable TVI/AHD/CVI/CVBS)
- Clear Imaging Against Strong Back Light Due to 120 dB True WDR Technology
- IP66 & TVS 6000V Protection with Lightning/Surge/Voltage Transient Resistance
Specifications
Camera
| Image Sensor | 1/2.8" CMOS |
|---|---|
| Pixel | 2 MP |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Electronic Shutter Speed | 1/3 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator) |
| Illumination Distance | 200 m (656.17 ft) (IR) |
| Illuminator On/Off Control | Zoom Prio; manual |
| Illuminator Number | 6 (IR) |
Lens
| Focal Length | 4.5 mm–144 mm |
|---|---|
| Max. Aperture | F1.6–F4.0 |
| Field of View | H: 59.6°–2.8°; V: 34.1°–1.6°; D: 67.9°–3.3° |
| Optical Zoom | 32x |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 0.1 m–1.5 m (0.33 ft–4.92 ft) |
| Iris Control | Auto; manual |
| DORI Distance | Detect Observe Recognize Identify 1986.2 m (6516.43 ft) 784.6 m (2573.99 ft) 397.2 m
(1303.29 ft) 198.6 m (651.64 ft) |
PTZ
| Pan/Tilt Range | Pan: 0° to 360° endless; Tilt: –20° to +90°, auto flip 180° |
|---|---|
| Manual Control Speed | Pan: 0.1°–240°/s; Tilt: 0.1°–120°/s |
| Preset Speed | Pan: 0.1°–240°/s; Tilt: 0.1°–120°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Pattern; Preset; Scan; Tour |
| PTZ Protocol | DH-SD Pelco-P/D (Auto recognition) |
Video
| Resolution | 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480) |
|---|---|
| Video Frame Rate | 1080p (25/30 fps); 720p (25/30/50/60 fps) |
| Day/Night | Yes |
| BLC | Yes |
| WDR | 120dB |
| HLC | Yes |
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Defog | Electronic |
| Digital Zoom | 16x |
| Image Rotation | 180° |
| Privacy Masking | Yes |
| S/N Ratio | ≥ 50 dB |
Function
| CVI Product Output Mode | TVI; CVI; CVBS; AHD (CVBS is only used for debugging) |
|---|
Certification
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpart B, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1 |
|---|
Port
| Analog Output | 1 channel (CVBS/CVI output, BNC) |
|---|---|
| RS-485 | 1 (baud rate range: 1200 bps–9600 bps) |
| Audio Input | 1 channel (LINE IN, bare wire) |
| Alarm Input | 2 (on-off value input: 0–5 VDC) |
| Alarm Output | 1 |
| Alarm Linkage | Scan; preset; tour; pattern; alarm digital output |
| Alarm Event | Alarm input |
Power
| Power Supply | 24 VDC, 2.5 A ± 25% |
|---|---|
| Power Consumption | Basic: 9.5 W Max: 25 W (PTZ + illuminator) |
Environment
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
|---|---|
| Operating Humidity | ≤ 95% |
| Protection | TVS 6000 V lightning proof; IP66; surge protection; voltage transient protection |
Structure
| Product Dimensions | 325.3 mm × Φ202.0 mm (12.81" × Φ7.95") |
|---|---|
| Net Weight | 4.6 kg (10.14 lb) |
| Gross Weight | 6.5 kg (14.33 lb) |
Accessories

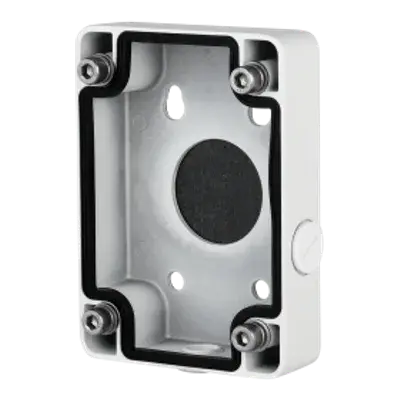

Junction Box
PFA120
View More

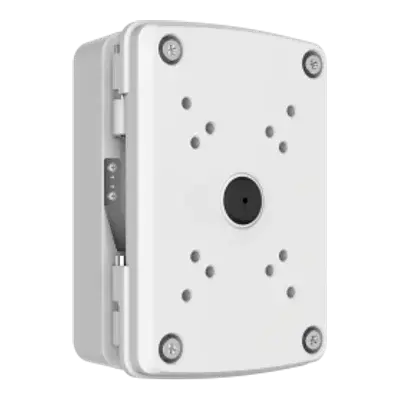

Water-proof Junction Box
PFA126
View More

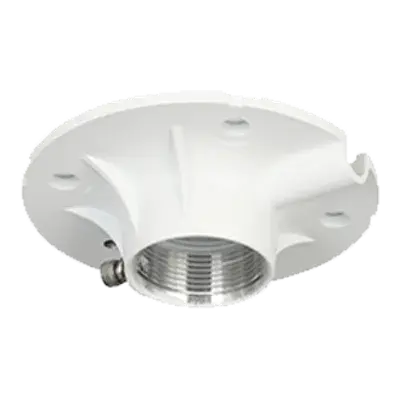

Ceiling Mount Bracket
PFB301C
View More

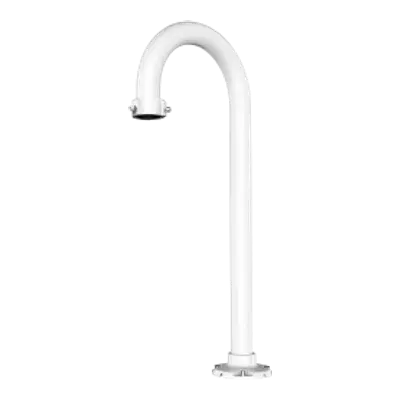

Plane Mount Bracket
PFB301S-E
View More

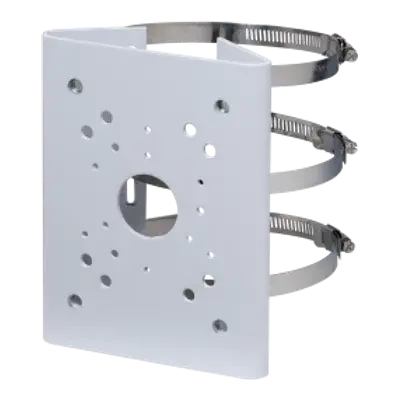

Pole Mount Bracket
PFA150
View More

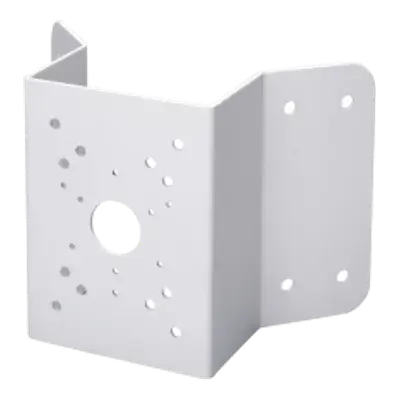

Other Mount Brackets
PFA151
View More

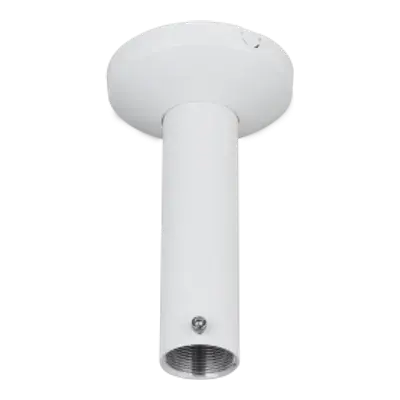

Ceiling Mount Bracket
PFB300C
View More

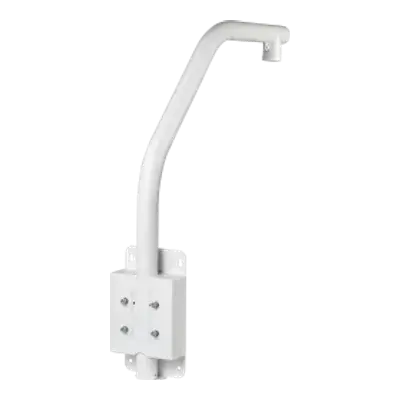

Parapet Mount Bracket
PFB303S
View More

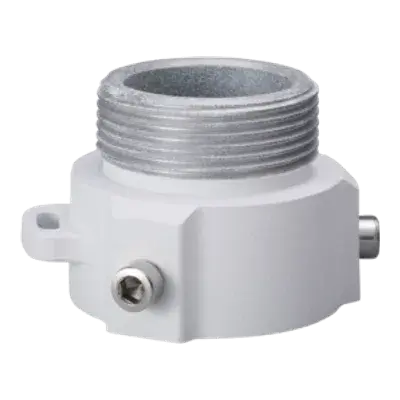

Mount Adapter
