Key Points

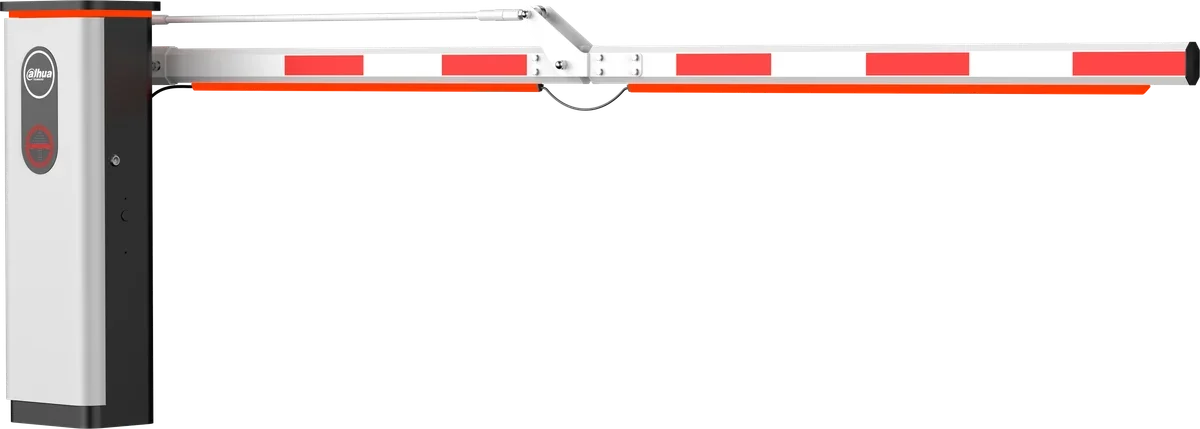

- Springless Design with Self-Adaptive Module, Fits Various Arm Lengths
- Integrated LED Display Shows Access Information
- Brushless DC Motor, Quiet and Long Lifespan
- Bluetooth App Configuration, Opens/Closes in 2–6 Seconds
- Manual Lift During Power Failure for Emergency Passage
- IP54 Rated, Anti-Corrosive Cold-Rolled Steel Case
Specifications
Basic
| Arm Type | Folding Arm Barrier |
|---|---|
| Arm Length | Folding arm: 3 m–4 m (9.84 ft–13.12 ft) |

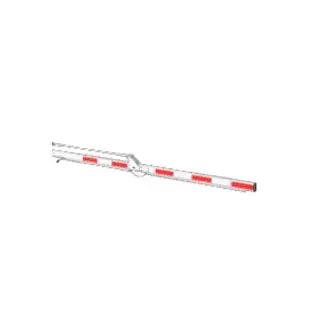

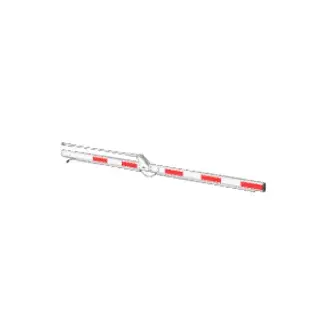

| Arm Model | IPMECD-F-ML-M1515; IPMECD-F-ML-M2020 |
| Opening Time | 2 s–6 s (adjust speed according to the length and weight of the arm) |
| Motor Type | DC brushless |
| Rotational Speed | 2000 RPM |
| Transmission Ratio | 150:1 |
| Bluetooth Standard | GFSK, π/4-DQPSK |
| Bluetooth Frequency Range | 2.402 GHz–2.480 GHz ISM band |
| Bluetooth Power Transmission | -15.7 dBm to +6.4 dBm |
| Sub 1G Modulation Type | ASK |
| Sub 1G Frequency Range | 433.82 MHz–434.02 MHz |
| Sub 1G Power Transmission | 433.82 MHz–434.02 MHz@-10 dBm |
Port
| RS-485 | 1 |
|---|---|
| I/O | 9 |
| Status Output | 2 channels, 1 for full open and 1 for full close |
Function
| Anti-drop | Supports peripheral connection for loop, IR, and radar anti-smashing |
|---|---|
| Auto Opening in Power Failure | No |
| Auto Lifting against Obstruction | Yes |
| Anti-collision | No |
| Count Mode | Yes |
| Hand Crank Control in Power Failure | Yes |
| Limit Description | Open/Close limit position adjustable |
| RS-485 Log | Obtain the log via the RS-485 port, including the number and type of operations, and error codes |

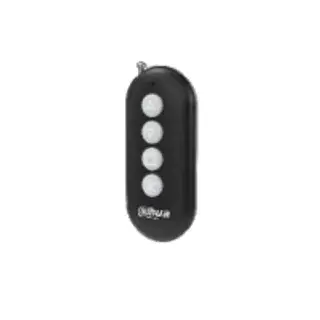

| Remote Control | Supports remote control at a maximum distance of 40 m (131.23 ft) in open space |
| Number of Pairable Remote Controllers | 40 (2 remote controls as standard at the factory) |
| Left and Right Interchangeable | Yes |
| Power Output | 12 V±5% (up to 1 A) |
General
| Power Supply | 220–240 VAC |
|---|---|
| Power Consumption | < 210 W |
| Motor Lifespan | 3.5 million uses |
| Operating Temperature | –35 °C to +65 °C (–31 °F to +149 °F) |
| Storage Temperature | –35 °C to +65 °C (–31 °F to +149 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Storage Humidity | 10%–90% (RH), non-condensing |
| Wind-proof (Wind Scale) | 6 |
| Protection | IP54 |
| Anti-corrosion Level | Basic Protection |
| Product Dimensions | 340.0 mm × 260.0 mm × 978.0 mm (13.39" × 10.24" × 38.5") (L × W × H) |
| Packaging Dimensions | 1073.0 mm × 435.0 mm × 435.0 mm (42.24" × 17.13" × 17.13") (L × W × H) |
| Net Weight | 35.1 kg (77.38 lb) |
| Gross Weight | 42.9 kg (94.58 lb) |
| Installation | Fix and install the bottom of barrier with expansion screws |
| *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. | |
