Key Points

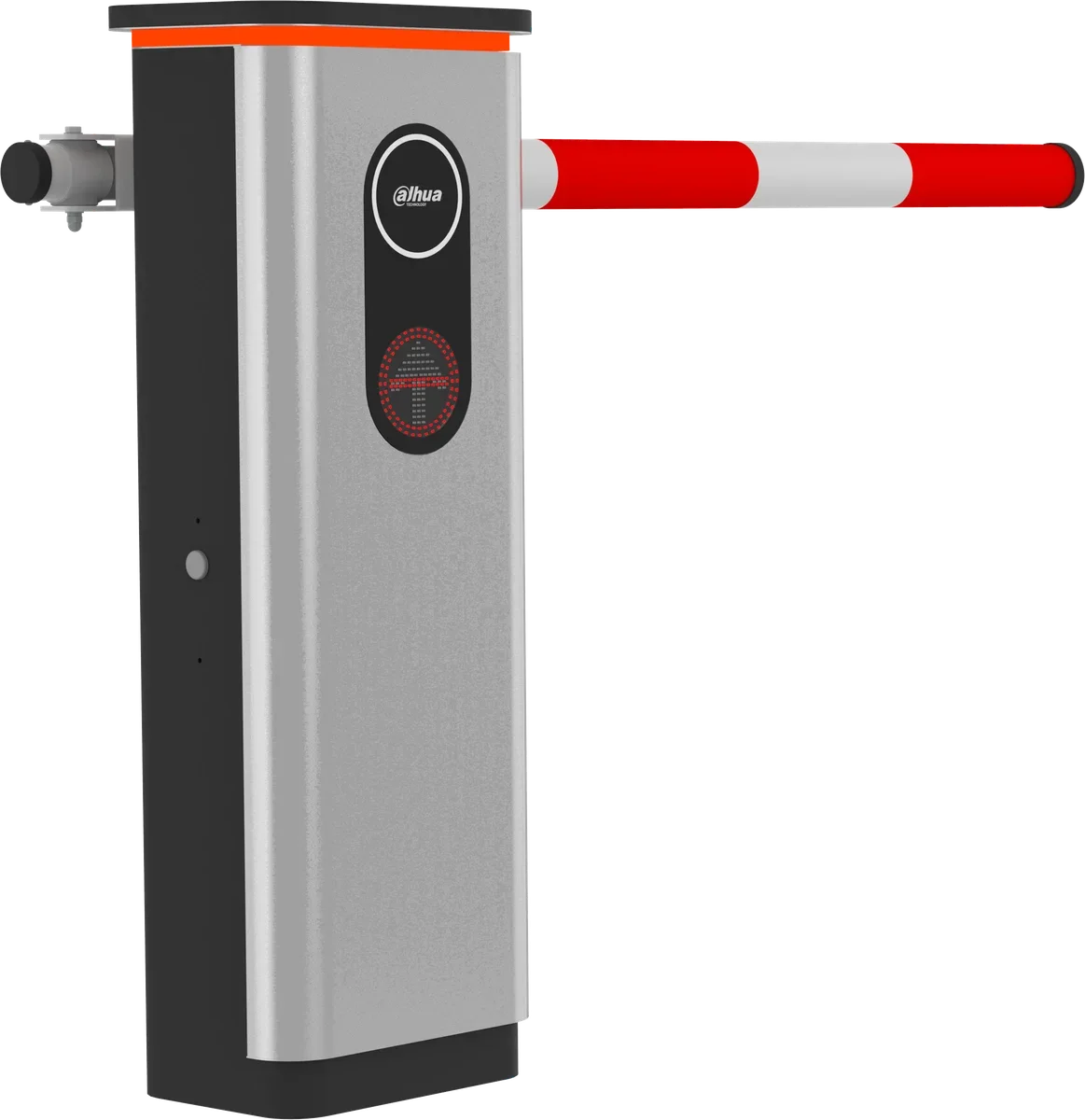

- Springless Design with Cylinder Arm, Right-Side Default, Switchable
- Multi-Dimensional Anti-Smashing: External Radar, Loop, and Elastic Rubber Strips
- Brushless DC Motor, 24 VDC, Withstands 6 Million Uses
- Automatically Rises During Power Failure for Safe Passage
- Opens and Closes in Just 1.4–6 Seconds
- Wide Voltage 100–264 VAC, Operating Temperature –40 °C to +70 °C
Specifications
Basic
| Arm Type | Cylinder Arm Barrier |
|---|---|
| Arm Length | Cylinder arm: 3 m–4 m (9.84 ft–13.12 ft) |

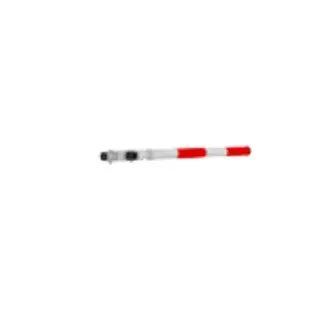

| Arm Model | IPMECD-0267-M30; IPMECD-0267-M40 |
| Opening/Closing Time | 1.2 sec–4 sec (speed is measured by the arm length and weight) |
| Motor Type | DC brushless |
| Rotational Speed | 2000 RPM |
| Transmission Ratio | 88:1 |
| Bluetooth Standard | GFSK, π/4-DQPSK |
| Bluetooth Frequency Range | 2.402 GHz–2.480 GHz ISM band |
| Bluetooth Power Transmission | –15.7 dBm to +6.4 dBm |
| Sub 1G Modulation Type | ASK |
| Sub 1G Frequency Range | 433.82 MHz–434.02 MHz |
| Sub 1G Power Transmission | 433.82 MHz–434.02 MHz@–10 dBm |
Port
| RS-485 | 1 |
|---|---|
| I/O | 1 |
| Status Output | 2 channels. One channel is fully open and the other channel is fully closed. |
Function
| Anti-drop | Supports loop, IR and radar anti-smashing function. |
|---|---|
| Auto Opening in Power Failure | Yes |
| Auto Lifting against Obstruction | Yes |
| Anti-collision | Yes |
| Count Mode | Yes |
| Hand Crank Control in Power Failure | Yes |
| Limit Description | The position at which the barrier rises and falls is adjustable. |
| RS-485 Log | Access operation log information through the RS-485 port, the information includes the number of opening barrier, the type of opening barrier, error code and more |
| Remote Control | Supports remote control at a maximum distance of 50 m (164 ft) in open space. |
| Number of Pairable Remote Controllers | Includes 2 remote controls, and supports up to 40 |
| Left and Right Interchangeable | Yes |
| Power Output | 12 V ± 5% (Max: 1 A) |
General
| Power Supply | 100–264 VAC |
|---|---|
| Power Consumption | < 360 W |
| Motor Lifespan | 6 million times |
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Storage Humidity | 10%–90% (RH), non-condensing |
| Protection | IP54 |
| Anti-corrosion Level | Basic Protection |
| Product Dimensions | 340.0 mm × 260.0 mm × 978.0 mm (13.39" × 10.24" × 38.50") (L × W × H) |
| Packaging Dimensions | 1,058.0 mm × 375.0 mm × 425.0 mm (41.77" × 14.76" × 16.73") (L × W × H) |
| Net Weight | 37.6 kg (82.92 lb) |
| Gross Weight | 43.2 kg (95.52 lb) |
| Installation | Bottom-mounted with expansion bolts |
