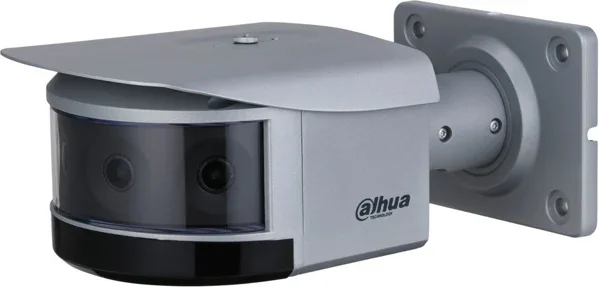

Key Points
- 4×8MP 1/1.8-inch CMOS Sensor, Low Illuminance, High Image Definition
- Outputs Max. 32MP (8192 × 3840) @25/30 fps
- Intelligent Functions: Crowd Distribution Map, Vehicle Density, Perimeter Protection, EPTZ
- AR Panorama Technology, Various AR Tags Can Be Overlaid
- 180° Panoramic View with 4-Channel Hardware Splicing
- IP67 and IK10 Protection
Specifications
Camera
| Image Sensor | 1/1.8" CMOS |
|---|---|
| Max. Resolution | 8192 (H) × 3840 (V) |
| ROM | 8 GB |
| RAM | 4 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.005 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 30 m (98.43 ft) (IR LED) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 8 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–90° Rotation: 0°–360° |
Lens
| Lens Type | Fixed-focal |
|---|---|
| Lens Mount | M16 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 180°; V: 100° |
| Iris Control | Fixed |
| Close Focus Distance | 1.8 m (5.90 ft) |
| DORI Distance | Detect Observe Recognize Identify 84.0 m (275.59 ft) 33.6 m (110.24 ft) 16.8 m (55.12 ft) 8.4 m (27.56 ft) |
| DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. | |
Intelligence
| EPTZ | Yes |
|---|---|
| IVS (Perimeter Protection) | Tripwire; intrusion; parking detection |
| Vehicle Density | Vehicle density; parking upper limit; vehicle congestion alarm |
| Crowd Distribution Map | Crowd map (Large-Scale AI Models), global people counting; people counting in area |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
Video
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
|---|---|
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Prioritize videos: Main stream: 8192 × 3840@(1–25/30 fps) Sub stream: 1280 × 600@(1–25/30 fps) Third stream: 2304 × 1080@(1–25/30 fps) Prioritize intelligence: Main stream: 8192 × 3840@(1–20 fps) Sub stream: 1280 × 600@(1–20 fps) Third stream: 2304 × 1080@(1–20 fps) |
| Stream Capability | 3 streams |
| Resolution | 8192 × 3840; 7680 × 3600; 7168 × 3360; 6720 × 3152; 5760 × 2700; 4800 × 2252; 4096 × 1920; 2880 × 1360; 2304 × 1080; 2048 × 960; 1520 × 712; 1280 × 600 |
| Bit Rate Control | CBR; VBR |
| Video Bit Rate | H.264: 96 kbps–32768 kbps H.265: 38 kbps–32768 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom; custom area |
| Gain Control | Auto; Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Privacy Masking | 4 areas |
Audio
| Audio Compression | G.711a; G.711Mu; G.726; G.723; PCM |
|---|
Alarm
| Alarm Event: No SD card; SD card full; SD card error; SD card durability warning; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; audio detection; voltage detection; external alarm; security exception; crowd distribution map; tripwire; intrusion; parking detection; intensity change; traffic congestion; parking upper limit |
Network
| Network Port | RJ-45 (10/100/1000 Base-T) |
|---|---|
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI |
| User/Host | 20 |

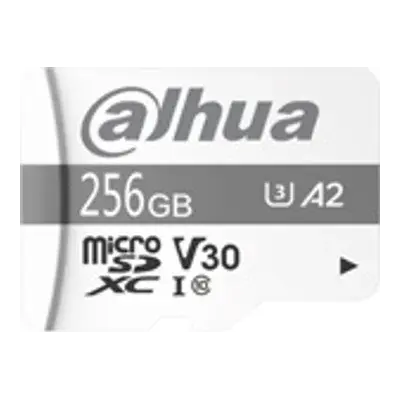

| Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Browser | IE: IE 9 and later Chrome: Chrome 86 and later Firefox: Firefox 86 and later |
| Management Software | DSS |
| Cyber Security | Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification |
Certification
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15; Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
|---|
Port
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
|---|---|
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 2 channels in: 5 mA 3 V–5 VDC |
| Alarm Output | 2 channels out: 1,000 mA 30 VDC/500 mA 50 VAC |
Power
| Power Supply | 12 VDC/24 VAC/PoE+(802.3at) |
|---|---|
| Power Consumption | Basic power consumption: 10.6 W (12 VDC); 11.9 W (24 VAC); 11.9 W (PoE) Max. power consumption (Intelligence on + IR intensity + WDR): 22.2 W (12 VDC); 25 W (24 VAC); 25 W (PoE) |
Environment
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
|---|---|
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% |
| Protection | IK10; IP67 |
Structure
| Casing Material | Metal + plastic |
|---|---|
| Product Dimensions | 298.3 mm × 172.5 mm × 120.5 mm (11.74" × 6.79" × 4.74") (L × W × H) |
| Net Weight | 3.16 kg (6.97 lb) |
| Gross Weight | 4.06 kg (8.95 lb) |
